0 evaluate
original price：
$ 4100.00
discount price：
$ 3800.00
-
Talaria
Color
Black
Blue
库存： 0
Buy Now
Add to Cart
Share to:
8000W
Motor
60V 45Ah
Battery
32km/h
Top Speed
120 km
Range
100Kg
Max Load
4-5 Hours
Charging Time
An Ideal Electric Dirt Bike for The Passion
The TALARIA STING R MX4 electric dirt bike was born to bring cutting edge performance to all riders. It features a CAD designed light weight frame design, a powerful electric motor delivering instant torque, transferred through an intelligent gear drive whilst operating extremely quietly. Its compact well-balanced structure is very easy to maneuver, and requires minimal maintenance. All these features make STING an ideal off-road bike for more people than ever to enjoy the passion and thrill of off-road riding adventures.
Deliver Cutting-edge Performance
Talaria created the Sting to bring cutting-edge electric performance to all riders. The MX4 features a lightweight frame, powerful mid-mounted IPM motor, 60V/45Ah battery and 120 km (78 mile) max range. Feel instant torque through the Sting’s intelligent gearbox and extremely quiet drivetrain. Further highlights include 4-level regen braking, a compact, well-balanced chassis and overall low maintenance.
All these features and more make the Talaria Sting R MX4 an ideal electric bike for experiencing the passion and thrill of off-road adventures.
120Km
Max Range
32 km/h
Maximum Speed
1225mm
Ultra-short wheelbase

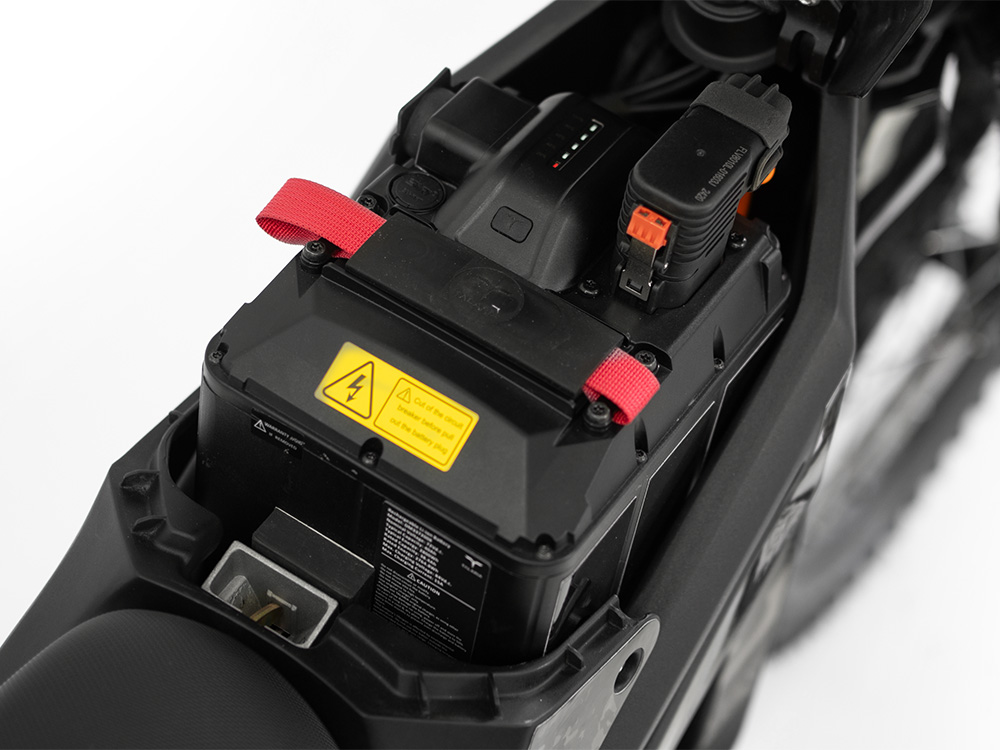

BATTERY
The Sting MX4 is powered by a strong 60V/45Ah lithium-ion power pack (2,700 watt-hours). Easily swappable, the battery pack can be removed and replaced with another fully charged power pack in seconds for limitless range. With electric auto-grade LG 21700 lithium-ion battery cells, state of the art programmed battery management system (BMS) and optimized internal structure, this battery pack ensures the bike brings you safe, hi performance off-road riding.
60V/45Ah LG 21700
High PerformanceLithium Battery
12.85 kg
Battery Weight

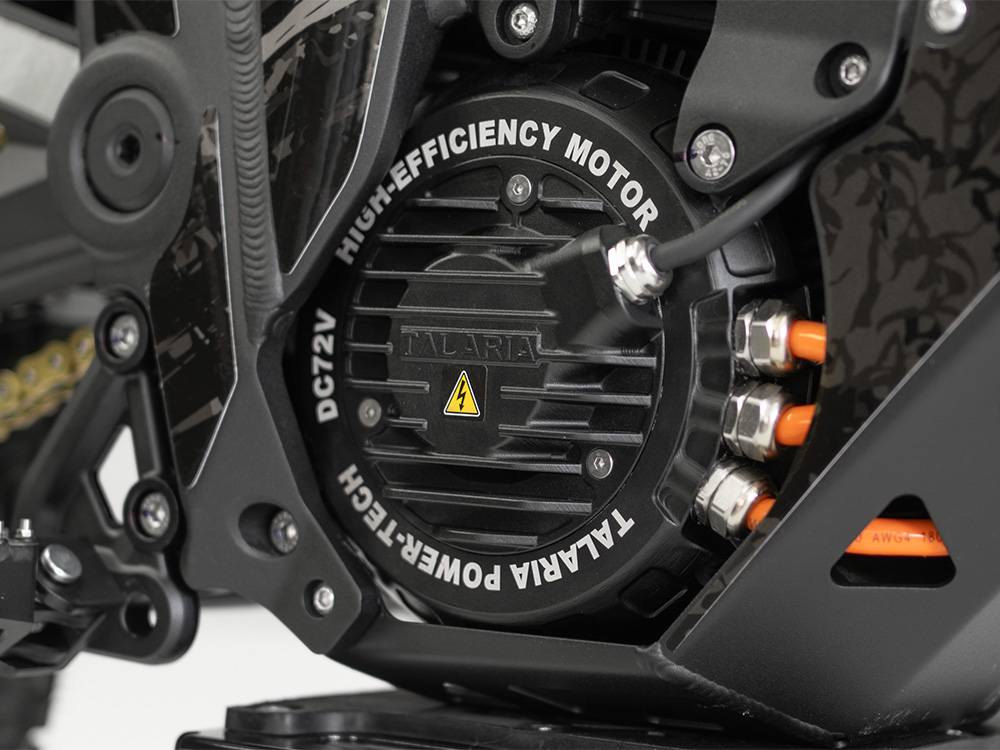

POWERTRAIN
The customized combination powertrain design is just perfect for the light weight electric MX bike. The high efficiency brushless permanent magnet synchronous mid-drive motor, with top-class magnet material and advanced processing, is available to output 45N.m peak torque. With exquisitely crafted high accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive systems. It’s time to say goodbye to that broken belt anxiety.
8,000W
Air-cooled DC IPM Mid-mounted Motor
60V (DC)
Nominal Voltage
45 N.M
Nominal Torque
CONTROLLER
With the high-quality hardware, superb layout and intelligent programming, the Sting MX4 controller has an extraordinary level of transient current impact resistance, ultra strong anti-interference, high-precision EABS voltage and discharge current control, error inspection, high and low temperature protection, anti-runaway, and smart energy regeneration. This guarantees a powerful, exciting, and safe riding experience with respectable range.
DISPLAY
The display screen features a high-contrast OLED display that offers riders a clear info display with low power consumption. With CAN communication, the dash can transfer data with the BMS and controller. The display menu provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and more. The dash is also adjustable if using different wheels, sprocket size, regen levels, and can display in km or miles.
TECHNICAL SPECIFICATIONS
VEHICLE
| Chassis Material | 6061 T4 & T6 aluminium alloy |
| Process Method | Forged under 6,000 tonnes of pressure |
| Surface Method | Anodizing |
| Headlight | LED |
| Front Fork | Fastace or Talaria Factory |
| Rear Shock | Fastace/HT/Talaria Factory |
| Wheel Size | 19 in. front/rear |
| Tires | FR 70/100-19 / RR 80/100-19 off-road tires |
| Max Range | 120 km @ 25 km/h (78 miles @ 15 mph) |
| Net Weight | 66 kg (145 lbs) with battery |
| Vehicle Dimensions | 1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in) |
| Seat Height | 840mm (33.1 in) |
| Wheelbase | 1,250mm (49.2 in) |
| Handlebar Length | 760mm (29.9 in) |
| Ground Clearance | 300mm (11.8 in) |
MOTOR
| Motor type | Air-cooled DC IPM |
| Mounting Position | Mid-mounted |
| Weight | 7.0 kg |
| Motor Ext. Diameter | 180mm |
| Peak Efficiency | 94% |
CONTROLLER
| Controller Type | FOC |
| Weight | 2 kg (5 lbs) |
| Dimension | 248mm x 128mm x 50mm |
| Peak Efficiency | 92% |
| Highest Work Temp | 100° |
POWER
| Peak Power | 8,000W |
| Nominal Voltage | 60V (DC) |
| Maximum Speed | Factory limited to 32 km/h (20 mph) |
| Nominal Torque | 45 N.M |
TRANSMISSION
| Gear Ratio | 8.35 (44T) / 9.18 (48T) |
| Primary Transmission | Gearbox |
| Drive Transmission | Chain |
ELECTRONIC
| Battery Pack | 60V 45AH |
| Battery Size | 170mm x 140mm x 380mm |
| Battery Weight | 12.85 kg (28.3 lbs) |
| Battery Cells | LG Brand 21700 cell (5000 MAH/cell) |
| Display | Speed, battery level, voltage, odometer |
| Regenerative Braking | 4-level adjustment |
*Specifications subject to change without notice. Battery ranges are estimated. Actual range may vary.
